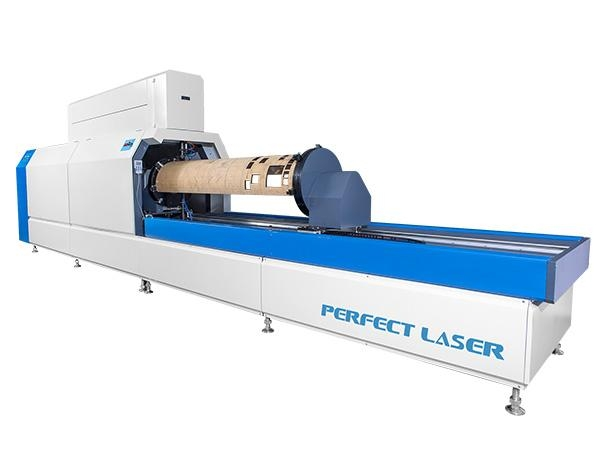

Rotary Die Board Laser Cutting Machine PEC-3000: Key Features Guide

When your business needs fast and accurate precision cutting options, the rotary die cutter and the PEC-3000 rotary die board laser cutting machine are the best investment you can make. This high-tech machine blends the old way of die cutting with CO2 laser technology. It lets companies in the textile, advertising, and packaging industries work with die boards up to 25 mm thick with great consistency. The Perfect Laser PEC-3000 gets rid of the flaws of hand sawing and provides a uniform kerf width and instant operating readiness—no need for warm-up delays.

Understanding Rotary Die Board Laser Cutting Technology

The development of die cutting technology has hit an interesting point where laser accuracy and mechanical efficiency meet. Traditional rotary die cutters are great for making a lot of things, but they aren't very good at making designs that are flexible or quickly setting up. Laser devices that work on their own can get very detailed images, but they often can't handle large amounts of data. The PEC-3000 fills in this gap by combining these two technologies into a single tool that can be used for a wide range of industrial tasks.

How Laser-Enhanced Die Cutting Works

At its core, the PEC-3000 uses 300W to 600W sealed CO2 laser tubes to melt material along lines that have already been planned. Laser cutting doesn't touch the object being cut like mechanical blades do. Instead, focused light energy does the work without touching it. This method gets rid of tool wear, lowers the need for upkeep, and makes it possible to follow complex patterns that wouldn't be possible with other methods. The Auto Following and Focus System of the machine constantly checks the distance between the cutting head and the surface of the die board. It then changes the focus point to keep the best cutting quality across the whole work area.

Distinguishing Hybrid Technology from Traditional Methods

The PEC-3000 works straight from digital files, while standard rotary die cutters need pricey new die sets for each version of the design. This change will drastically change how you work. Designs you make in CAD software will instantly become cutting directions, with no tools steps in between. The machine uses compressed air as its main support gas, so it doesn't have to use expensive nitrogen or oxygen, which is something that many laser systems have to do. This operating benefit lowers the cost of running the laser cutter to about 10% of what large-format laser cutters require. This makes the technology available to medium-sized businesses and specialized fabricators.

Environmental and Operational Advantages

Sustainability is becoming more and more important in modern industry, along with efficiency. Both of these problems are solved by the PEC-3000's low power consumption and accuracy in reducing waste. Laser cutting makes better use of materials because it only takes the material needed for the cut path, without the waste that comes with saw blades' kerf. You leave less of an impact on the world and make it easier to run your business because you don't need any cooling systems or chemical processing agents. Businesses that use the PEC-3000 say that their trash rates are much lower than with traditional cutting methods. This means that being environmentally friendly saves money.

Key Features of the PEC-3000 Rotary Die Board Laser Cutting Machine

The PEC-3000 was made by Perfect Laser with real-world production needs in mind. It has features that fix typical problems in die board manufacturing. The technical details of the machine are based on 20 years of improving laser and CNC manufacturing, which is supported by relationships with more than 10,000 users around the world.

Core Technical Specifications

The PEC-3000 has different work areas that can be set up to fit the space limitations and output needs of your building. Bed widths of 900x900mm, 1200x1200mm, 1200x1500mm, and 1200x1800mm are standard, but special sizes can be made upon request. Laser power possibilities of 300W, 400W, and 600W give you choices based on the width of the material you need to work with and the speed you want to work at. The beam quality from these CO2 laser tubes is unmatched, so you can be sure of clean edges and consistent depth control across multiple shifts.

Imported ball screws, linear guide rails, and Panasonic servo motors make up the machine's mechanical base. This mixture ensures fast positioning without losing accuracy, which is very important when working with die boards because accurate measurements have a direct effect on the quality of the finished product. The tempering heat-treated lathe bed doesn't bend even when it's being used all the time, so it stays in the right place for years of service.

Automation and Control Systems

The PEC-3000's user interface is based on making operations as simple as possible. All of the machine's features can be easily accessed through an advanced LCD touchscreen, and USB port connection and DSP offline control allow for flexible file management. Operators can load multiple job files, put production runs in a queue, and keep an eye on the cutting process without having to stay connected to a computer all the time, whether using the rotary die cutter or the laser system. This offline feature is very useful in business settings where problems with the network or computers could stop work otherwise.

The single-head cutting architecture with flight optical path design makes beam alignment easier, which makes setup simpler and cuts down on downtime during repair periods. When optical changes need to be made, techs can quickly finish the job by following simple steps instead of the multiple stages of calibration that older dual-head setups needed.

Material Processing Capabilities

The PEC-3000 was designed by Perfect Laser to handle die board sizes ranging from 15 mm to 25 mm in a single pass. It can also handle kerfs of 0.45 mm, 0.71 mm, 1.05 mm, and 1.42 mm. Because of this, you don't need to buy multiple tools for different board sizes, which saves you money on equipment. The kerf stays the same from the top surface to the bottom edge, which is an important quality that is hard to achieve reliably with traditional cutting methods.

The machine can work with die boards, wood, acrylic, fabric, leather, and different kinds of plastics. This means it can be used to make advertising signs, cut out cloth patterns, and customize promotional items. With this ability to work with multiple materials, the PEC-3000 goes from being a specialized tool to a versatile base for manufacturing that can grow with your business.

Maintenance and Longevity Considerations

Perfect Laser's modular design mindset makes sure that upkeep is easy and doesn't cost too much for as long as the machine is in use. Functional sections fit together to make small assemblies that techs can examine and fix without having to take them apart a lot. The sealed CO2 laser tubes only need to be cleaned every so often, and the compressed air help system gets rid of the need for complicated gas handling equipment.

Regular maintenance checks the optical parts, makes sure they are aligned, and makes sure the motion system is oiled. These are all jobs that in-house staff can do with some basic training. Perfect Laser offers full instructions, remote help, and for more complicated operations, installation services in other countries. Because the company promises lifetime service, you'll never be stuck with old tools or replacement parts that aren't accessible.

Comparing PEC-3000 with Other Die Cutting Solutions

Before you can choose the right cutting technology, you need to know how the different methods fit with your output needs, price, and quality standards. The PEC-3000 is in a unique situation in the market because it offers features that other products find hard to match.

Flatbed Die Cutters vs. Laser-Enhanced Systems

Traditional flatbed die cutters are good for some tasks, like cutting through very thick materials or using die sets that have already been made. But they force you to use set cutting patterns and require long wait times for making new dies. Every time the design changes, new cutting dies have to be ordered. This causes delays and extra costs that slow down the product development cycle.

The PEC-3000 gets rid of these problems completely. When changes are made to the design, the cutting files are changed right away, without having to change the tools themselves. It becomes quick and cheap to make prototypes, so you can change ideas based on feedback from customers or market tests without having to pay extra. In competitive areas where time-to-market is key to success, this flexibility is key.

Manual vs. Automated Processing Benefits

Marking and cutting older die boards had to be done by hand a lot of the time. Before putting boards through band saws, craftsmen drew cutting lines on them with pencils or pens. This was a labor-intensive process that could lead to mistakes and inconsistent results. When boards were being moved, they often got out of line, which got worse as they went through more processing steps.

The PEC-3000 is fully automatic, so there is no room for error from people. The machine does the whole job without any help from the user after they put the material and start the cutting program, and it integrates a laser die cutting machine to ensure precision and consistency. This makes sure that the first board cut and the thousandth board cut are the same, so quality standards are met throughout all production runs. Instead of doing the same things over and over, operators put their skills to use on jobs that add value, like quality control and production planning.

Total Cost of Ownership Analysis

More and more, choices about what to buy focus on lifetime costs that go beyond the initial purchase price. From many angles, the PEC-3000's economics are very convincing. The low power use, which is about 10% of what large-format laser systems use, immediately lowers energy costs. Getting rid of help gases that are used up quickly, like nitrogen, cuts another big ongoing cost. Fewer repairs are needed and the building is strong, so it lasts longer and has less downtime.

When comparing different die board laser cutting machines, you should not only look at the price, but also the amount of training needed, the cost of consumables, how often the machines need to be maintained, and how long they are expected to last between repairs. The combined design and careful engineering of the PEC-3000 greatly lower these hidden costs, making it more cost-effective overall than alternatives that seem to be less expensive.

Applications and Benefits of the PEC-3000 for B2B Procurement Clients

Knowing how the PEC-3000 works in real-life situations helps procurement workers make investments and predict how they will affect operations. Perfect Laser has a lot of customers in many fields, such as advertising, textiles, packing, and general manufacturing. This gives them a lot of useful information about the benefits.

Packaging Industry Applications

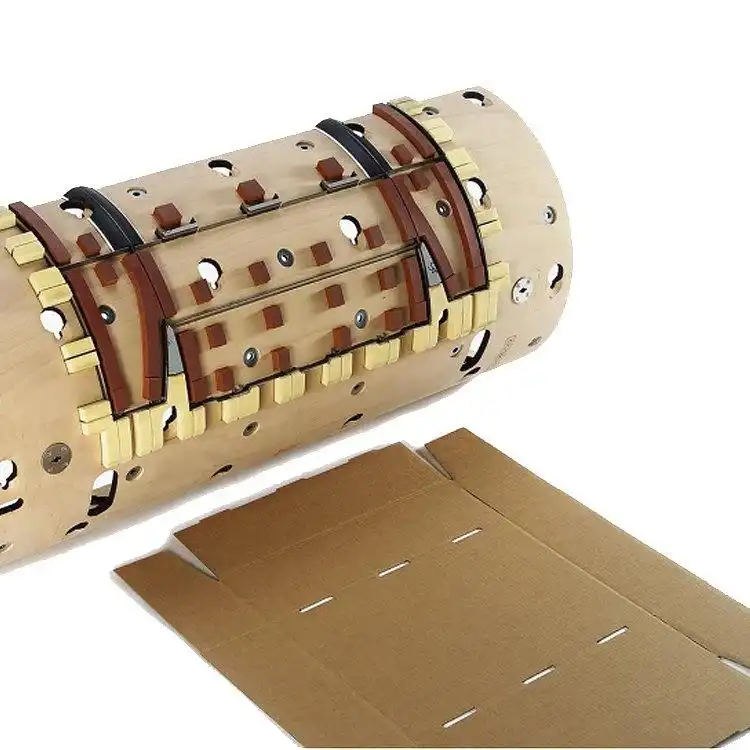

Manufacturers of packaging are always under pressure to meet specific needs quickly and affordably. When used in this setting, the PEC-3000 does a great job of working carton die boards with accuracy that older ways can't match. Clean, uniform cuts make sure that folding goes quickly and that packages that have been put together meet the required sizes. Being able to switch between different carton designs without having to change the tools makes short-run production cost-effective. This creates possibilities in custom package markets where die cutting isn't cost-effective.

Advertising and Signage Production

Sign shops and advertising makers like how the PEC-3000 can work with a variety of materials. The machine that cuts blanks for wooden signs can also work with glass panels to make lit displays and carve intricate designs on plaques for advertising. When compared to keeping separate cutting and engraving tools, this combination makes work easier and takes up less floor space. The laser method doesn't touch the surface, so it doesn't damage fine finishes or put stress on materials that are easily broken.

Textile and Garment Manufacturing

Fabric cutting is hard because the materials move around a lot, the edges tear, and complicated designs are hard to cut with regular tools. The PEC-3000's laser beam cuts neatly through several layers of cloth without dulling the blades or warping the edges. Pattern complexity doesn't affect cutting speed or quality, so it's possible to make detailed lace patterns or textile parts that would not be possible with die cutting or rotary knife systems. Manufacturers of leather goods love laser cutting because it seals the edges perfectly, so they don't have to do any extra work to finish them.

Prototyping and Custom Fabrication

Product development teams need to get from an idea to a working prototype quickly. The PEC-3000, along with a die board laser cutter, helps this process by turning computer drawings into cut parts in just a few hours, instead of the days or weeks that standard tooling needs. Changes to the design are easy to add, so engineers can try many versions quickly. This responsiveness shortens the time it takes to build a product and get it on the market, which are competitive benefits that often determine how well a product does.

Investment Justification and ROI

For capital equipment requests, procurement managers need real facts. The PEC-3000 gives you measured results in a number of ways. The most obvious saves come from automation that lowers the cost of labor, especially in businesses that still do things by hand. Cutting down on material waste saves money over time and saves even more. More options to take on jobs that were turned down or outsourced before creates new ways to make money. Many customers say they get their money back in less than 18 months, and some high-volume businesses get their money back even faster.

Perfect Laser offers a variety of ways to buy, such as straight purchase, leasing, and custom setup, so that customers can find a way to meet their needs and budgets. The company cares about its customers beyond the sale. They offer free advice to help you get the most out of your machines and get the best return on your investment.

How to Choose and Procure the Right Rotary Die Board Laser Cutting Machine

When choosing the right die cutting tools, you need to look at more than just how well it cuts. This organized method helps people who work in buying make smart choices that meet the needs of the company.

Assessing Operational Requirements

Start by writing down your present and planned output volumes. Figure out how many die boards need to be cut every day on average, when demand is highest, and how the business is expected to grow. This average sets the lowest throughput standards that any possible machines must meet. Think about the material's maximum width, standard sizes, and the types of materials you usually work with. The PEC-3000 can cut boards up to 25 mm thick, which is enough for most normal tasks. However, for specific needs, different setups may be needed.

Budget Considerations and Financing

Set sensible budget limits that include not only the cost of the buy but also the cost of installation, training, and the first stock of spare parts. Ask for thorough quotes that list all the costs so there are no surprises during the execution. If your capital budget is limited, look into other ways to pay for things. For example, leasing can give you access to cutting-edge technology while keeping your cash on hand for other business needs.

Technical Support and Training

It doesn't matter how complex your equipment is if your team can't use it well. Check out the training programs and continued technical help that makers offer. As part of normal delivery, Perfect Laser gives full operator training, and if needed, they can also do installation services abroad. The company offers online support 24 hours a day, 7 days a week, so you can get help no matter what time zone you're in, which is very important for businesses that have multiple shifts.

Initiating the Procurement Process

After you're done with your evaluation, call Perfect Laser to talk about your unique needs. The company has skilled consultants who can suggest the best configurations, show you how to cut samples, and, if necessary, set up facility inspections. This advice process doesn't cost anything, but it gives you useful information that will help you make your final choice.

Conclusion

The PEC-3000 shows that Perfect Laser is dedicated to providing useful and dependable die cutting options, including the rotary die cutter, that deal with real production issues. It can be used by a wide range of businesses, from small makers to large manufacturers, thanks to its laser accuracy, mechanical durability, and ease of use. The machine's low maintenance needs, ability to run on compressed air, and ability to handle a variety of materials make it an appealing value proposition that goes far beyond the original purchase decision. As flexible, digitally-driven production methods continue to take over manufacturing, tools like the PEC-3000 give businesses the flexibility they need to stay competitive. With 20 years of knowledge and a focus on customer satisfaction, Perfect Laser is a company that wants your long-term success.

FAQ

1. What materials can the PEC-3000 process besides die boards?

The PEC-3000 can work with a wide range of materials, such as acrylic, wood up to 25 mm thick, fabrics, leather, jeans, and some hybrid materials. Because of this, it can be used for more than just standard die board jobs, like making advertising signs, cutting textiles, engraving promotional items, and general manufacturing.

2. How does laser cutting compare to traditional sawing in terms of accuracy?

When you use a laser to cut, the mechanical tools don't bend or shake, which can affect how accurately you cut. With accuracy measured in hundredths of millimeters, the PEC-3000 keeps the kerf thickness the same from the top to the bottom of the surface. This uniformity is especially helpful when making die boards for precise packing, since consistent dimensions have a direct effect on the quality of the finished product.

3. What training do operators need to run the PEC-3000 effectively?

Perfect Laser offers full training that includes how to use the machines, do simple repairs, and follow safety rules. After a few days of hands-on training, most workers are able to do their jobs well. The touchscreen interface and offline control system make daily tasks easier, and expert help is still available for more complicated problems.

Partner with a Trusted Rotary Die Cutter Manufacturer

Perfect Laser has been using lasers and CNC machines to make things for 20 years, so they know how to do it right. Since we've been a rotary die cutter supplier for a long time, we know that buying tools is a big investment that needs careful thought and reliable support. Our PEC-3000 die board laser cutting machines use reliable CO2 laser technology and precise mechanical systems to meet your tight production plans. Please email our team at [email protected] if you are a procurement manager, production engineer, or company owner and want more information, a sample cutting demonstration, or a facility review. Because we focus on the customer, you will get honest advice that is tailored to your needs instead of general sales pitches. Discover why more than 10,000 businesses in the advertising, textile, manufacturing, and packing fields trust Perfect Laser as their equipment partner.
